DIGITAL HYDRAULIC TESTER

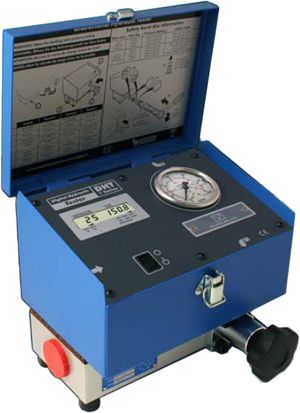

The AT40031 Digital Hydraulic Tester has been designed for easy connection to a hydraulic circuit so that flow, pressure and temperature can be readily checked. The flow meter can take full back pressure up to 6000 psi and the built in loading valve enables many of the operating conditions to be simulated. The tester can be connected anywhere in the hydraulic system to test pumps, motors, valves and cylinders in both flow directions.

FEATURES:

• Flows up to 100 US gpm
• Pressure up to 6000 psi
• Temperature up to 120°C (250°F)
• Digital display for flow/temp, analogue pressure
• Flow accuracy 1% of full scale
• Bi-directional loading valve with INTERPASS™ burst disc protection fitted as standard

APPLICATION:

• Hydraulic Systems
